Power Usage Effectiveness (PUE) - a Failed Metric?

May 1, 2025

“PUE is dead, long live PUE.”, from an unknown Linkedin user

This phrase, shared in a recent LinkedIn post, captures the debate surrounding Power Usage Effectiveness (PUE) - a metric that has shaped data center design for nearly two decades.

Developed by Christian Belady in 2007, PUE was intended to help operators understand how much of their energy was actually powering IT equipment - and how much was lost to support systems like cooling and power distribution.

It’s a simple formula:

PUE = Total Site Power / IT Power

The Problem with Simplicity

For years, most data centers operated with PUE values ranging from 2.0 to 3.5.

With a PUE of 2.0, the facilities infrastructure is consuming the same amount of power as the IT side and while a PUE of 1.0 is not possible (there is even power loss tied to power cable electrical resistance), cooling efficiency is also impacted by climatic conditions, PUE’s in the range of 1.05-1.03 are possible.

Thanks to a variety of optimization techniques and the use of computational fluid dynamics (CFD) tools, leading data centers now routinely achieve PUE values between 1.2 and 1.6. But we can do better.

Why PUE Still Matters

PUE’s value lies in its clarity and consistency. With just a main panel meter (site power) and IT power from the UPS (uninterruptible power supply), any data center operator can determine their PUE value, and understand where infrastructure efficiency is occurring, typically in the cooling infrastructure.

It’s particularly useful when paired with change management. Whether you're adding servers, upgrading cooling, or modifying airflow, tracking PUE helps assess the impact of those changes.

However, the metric can be misinterpreted. For example, one major tech firm shifted from centralized UPS systems to battery-integrated servers. The batteries' charging power was counted as “IT load,” skewing the PUE despite serving a facility function.

Misuse and Misinterpretation

Another issue is that PUE is often used competitively, comparing one facility to another. This is problematic. Too many variables - climate, architecture, equipment - make fair comparison nearly impossible. Bragging about low PUE can obscure deeper inefficiencies. A poorly designed data center in a cold climate can outperform a well-designed data center in a hot and humid environment.

So what’s the right way to use PUE? Think of it as a trend indicator, not a scoreboard. It can’t prescribe solutions, but it can help you measure the level of power losses tied to an inefficient infrastructure..

The Real Challenge: Growing Demand

Rack-level power density has exploded over the last two decades - from 2-4 kW per rack in the late 1990s to 400+ kW per rack with today’s AI hardware. Meanwhile, cooling capabilities have lagged behind. Nvidia just announced a 1MW rack, roughly 500 times the density of a rack in 2000.

At present, U.S. data centers consume 3-4% of national electrical generation capacity. That is estimated to rise to 20% by 2030. The power grid simply can’t scale fast enough. To avoid future bottlenecks, we need to completely rethink infrastructure designs, and facilities management..

Power vs. Energy: They’re not the same

The terms "power" and "energy" are often used interchangeably, but they represent different values.

Power is the rate of consumption (e.g., kW)
Energy is power consumed over time (e.g., kWh) So, 1 kWh represents the amount of energy consumed over 1 hour at the rate of 1kW of power.

PUE reveals inefficiencies, but to resolve them, we need to understand where power is being lost.

Figure 1: Infrared Thermal image of a data center cold aisle containment system.

Cooling: The Biggest Opportunity

Cooling infrastructure is often the least efficient part of the data center - and the best target for optimization. Done right, better cooling reduces energy use and extends IT equipment lifespan.

While there are multiple cooling architectures (Direct Expansion, Chilled Water, Adiabatic), all share common components: chillers and circulation fans.

One persistent problem? CRAC (Computer Room Air Conditioning) units typically operate in isolation.

And while some manufacturers have software to avoid “CRAC Fighting”, what’s missing is a site-wide management system that focuses on energy optimization across the entire facility: a policy-based engine to coordinate multiple disparate components of the facilities infrastructure.

Figure 2: Complex 3-layer Computational Fluid Dynamics (CFD) thermal/airflow model

The Hidden Advantage

Effective optimization starts with measurement.

Most CRAC units still run at fixed 100% fan speed to maintain underfloor pressure - often based on outdated assumptions about airflow dynamics. This disconnect between design intent and actual airflow behavior is a key source of inefficiency.

Modern data centers implement a Building Management System (BMS) connected to a facilities service network. This network should include:

Power meters
Temperature sensors
Airflow (CFM) meters
Flow meters for chilled water systems

Installing these today enables smart management tomorrow.

The Path Forward: AI + Policy-Based Management

The next step in energy optimization is automation. Human operators can’t react fast enough to changing workloads, but AI can.

Given the dual inflection points of Artificial Intelligence and Liquid Cooling, automated infrastructure management isn’t just helpful - it’s essential.

Workloads today are highly dynamic. AI-driven systems can respond in real-time to changes in thermal and power loads.

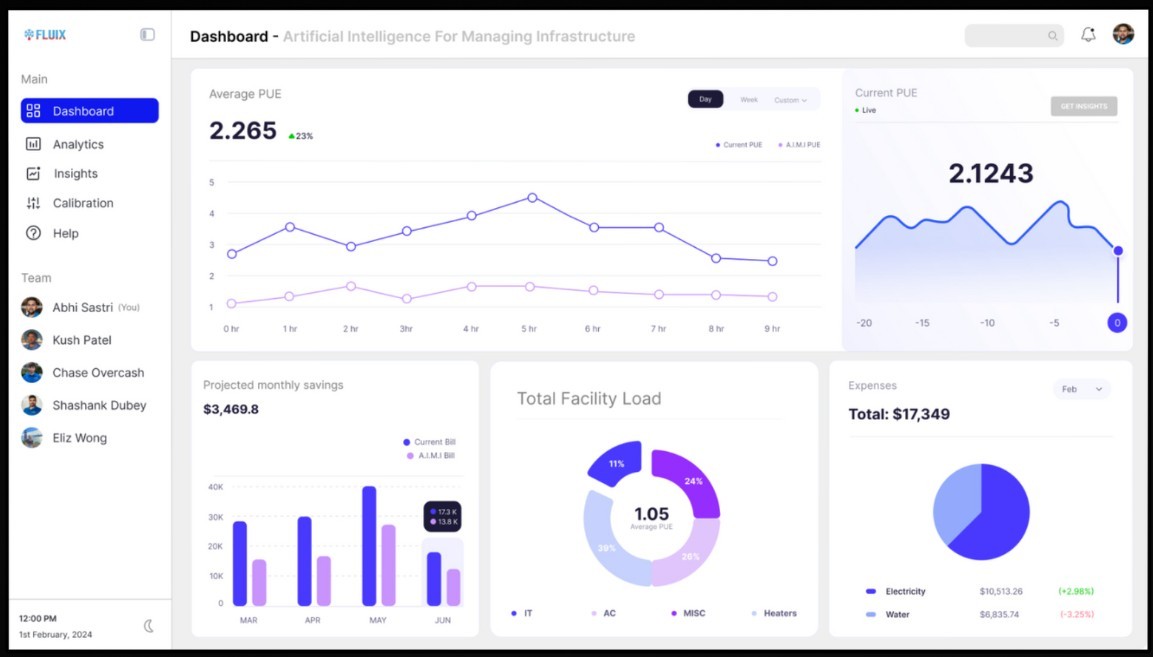

Meet A.I.M.I.® by Fluix

At Fluix.ai, we’ve developed A.I.M.I.® (Artificial Intelligence for Managing Infrastructure) - a next-generation AI platform that actively manages data center facilities infrastructure.

A.I.M.I. unifies disparate components into a single, policy-based engine that:

Continuously monitors all systems
Makes micro-adjustments in real-time
Issues alerts for anomalies
Performs predictive failure analysis
Provides deep historical and live data for ops and execs

It works across all climates and facility sizes, and in most cases, can reduce power consumption by ~40%.

Conclusion

PUE isn’t perfect - but it’s not obsolete. It remains a vital high-level indicator of data center energy efficiency. The real opportunity lies in going beyond PUE: measuring what matters, optimizing what we can, and using AI to manage what humans can’t.

In the face of growing demand, increasing density, and tightening energy constraints, data-driven, AI-powered infrastructure management is no longer optional - it’s mission critical.
